In disaster response and remote field operations, restoring communications quickly, reliably, and affordably is essential for on-site coordination and rescue efforts. However, conventional communication solutions often require lengthy network deployment, involve high satellite data costs, or rely on time-consuming manual antenna alignment.

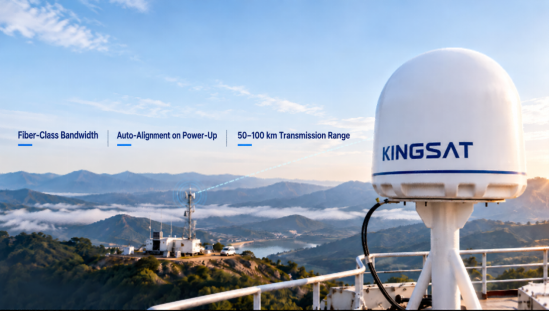

Using its automatic microwave tracking technology, KINGSAT offers a cost-effective wireless backhaul solution for temporary base stations in remote mountainous and disaster-affected areas. The solution enables rapid deployment of high-bandwidth, low-latency communication links with fiber-like performance in minutes, even in challenging environments.

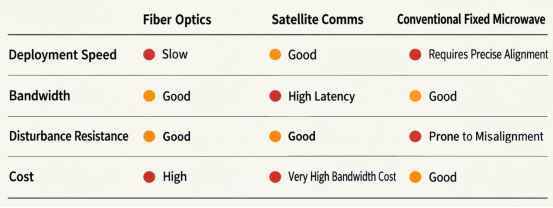

Challenge: What Makes Temporary Base Station Backhaul Challenging in Remote and Disaster-Affected Areas?
- Vulnerable Terrestrial Networks and High Fiber Installation Costs
Earthquakes, flooding, typhoons, and wildfires can damage terrestrial fiber infrastructure and cell sites, causing communications outages. In remote mountain areas, mining sites, and temporary construction sites, installing fixed fiber links is costly and time-consuming, making it difficult to deploy emergency communications networks quickly.
- High Costs and Deployment Challenges of Conventional Backhaul
Conventional satellite communications, such as VSAT, are less affected by terrain obstacles, but high bandwidth costs and relatively high latency can make real-time transmission of large data volumes difficult. Standard fixed microwave antennas, meanwhile, require manual alignment during installation. Installation and setup can be time-consuming, while wind-induced movement or other environmental disturbances can disrupt the link.
Solution: Rapid Deployment of Temporary Backhaul Links with Auto-Tracking Microwave Antennas
To address these challenges, KINGSAT has developed a cost-effective microwave backhaul solution for temporary base stations, drawing on its expertise in developing automatic tracking antennas for maritime and land-based applications.

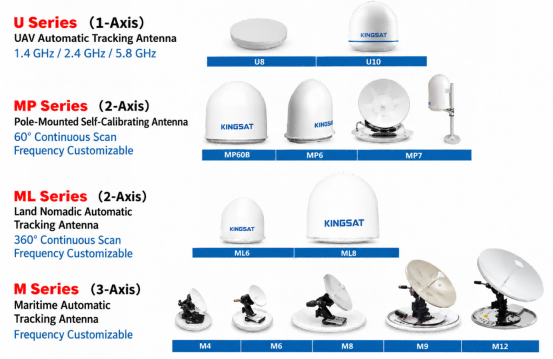

The solution combines KINGSAT microwave auto-tracking antennas, such as the ML land-mobile tracking series or MP pole-mounted self-calibrating series, with a built-in high-speed microwave modem and a temporary 4G/5G base station or emergency command vehicle.
- “Mobile Fiber” Wireless Backhaul
Equipped with a high-gain parabolic reflector and a two-axis or three-axis stabilized servo-tracking platform, the antenna can quickly establish a point-to-point (PtP) microwave backhaul link connecting a temporary base station or emergency command vehicle to a remote fiber access point or telecom operator’s tower. The link delivers high-bandwidth wireless transmission comparable to that of a fiber backbone.
- Narrowband VHF-Assisted Intelligent Antenna Alignment

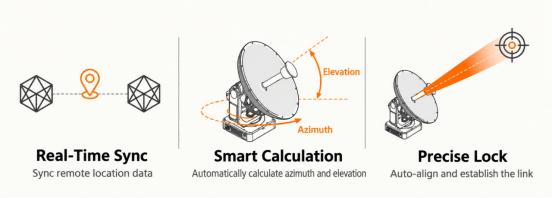

The system integrates narrowband VHF data radios that enable sites to exchange location data, including latitude and longitude, in real time. Intelligent algorithms then automatically calculate the azimuth and elevation angles, allowing antennas at distant sites to align precisely and establish a microwave link quickly.

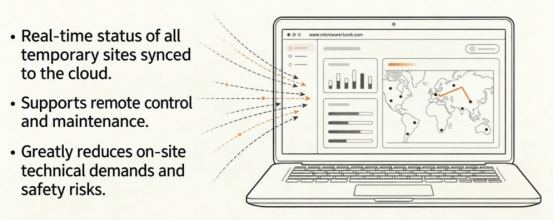

- Centralized Cloud Monitoring and Remote Management
The operating status of all sites is synchronized in real time with the cloud platform (www.microwave-track.com). Operations and maintenance teams can remotely monitor, control, and maintain the sites, significantly reducing the need for on-site maintenance.
Advantages: Why Are Auto-Tracking Microwave Antennas Better Suited for Emergency Deployment?

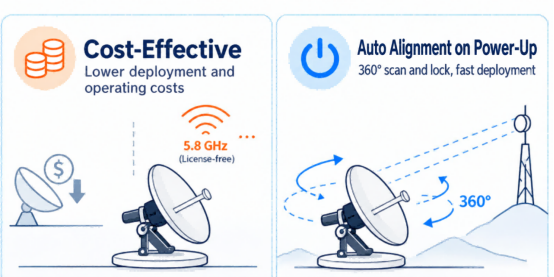

- Cost-Effective Solution with Lower Deployment and Operating Costs
By operating in license-exempt bands, such as 5.8 GHz where permitted, or in customized frequency bands, the solution can reduce the costs of laying fiber and paying for satellite bandwidth, offering a more economical wireless transport option.
- Rapid Deployment with Auto Alignment at Power-Up
With auto-alignment and 360° automatic scanning and alignment, the antenna eliminates the need for complex manual on-site adjustment by specialist technicians. Once powered on, it can automatically search for and lock onto the remote signal, enabling link setup in minutes.

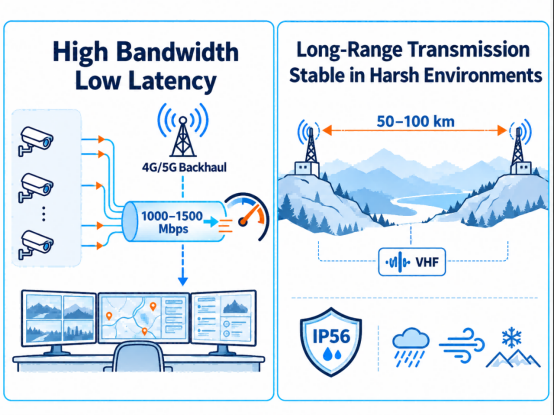

- Fiber-Class Bandwidth and Low Latency

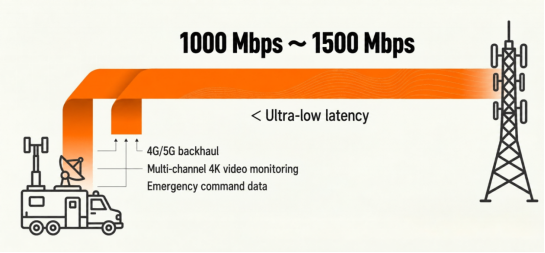

The system supports transmission rates of up to 1,000–1,500 Mbps with low latency, providing capacity for 4G/5G base station backhaul, multiple 4K video surveillance streams, and on-site emergency command and coordination data.
- Long-Range Transmission and Weather-Resistant Design
With VHF-assisted remote location synchronization, the microwave link can reach distances of 50–100 km. The antenna features a streamlined radome with an ingress protection rating of up to IP56, designed to withstand challenging wind and rain conditions and support stable operation in demanding outdoor environments.
Applications: From Disaster Response to Temporary Networks in Remote Areas

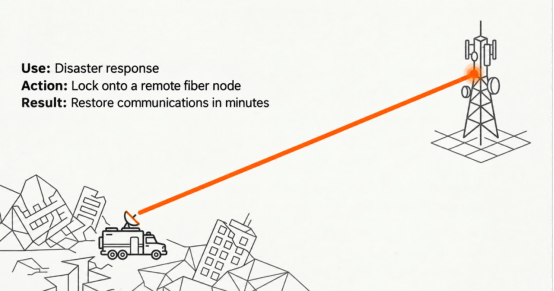

- Disaster Response and Emergency Command Vehicle Backhaul
During earthquake, flood, or wildfire response operations, KINGSAT's auto-tracking microwave antenna, mounted on an emergency command vehicle, can quickly establish a link to an operational telecom operator's fiber access point tens of kilometers away, helping restore communications coverage in disaster-affected areas.

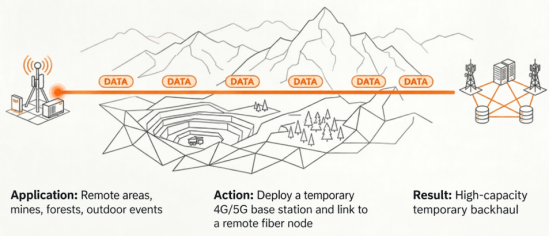

- Temporary Base Stations and Field Operations in Remote Areas
In mountainous regions, mining sites, forested areas, or large outdoor event venues with no existing network coverage, temporary 4G/5G base stations can be deployed quickly to provide high-capacity wireless backhaul.
- Integrated Air-Ground Communications with Low-Altitude Relays

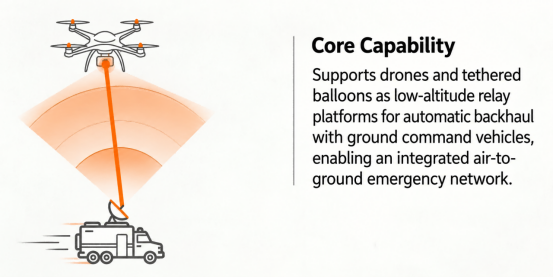

The solution supports automatic tracking and wireless backhaul between low-altitude relay platforms, such as drones and tethered balloons, and mobile ground command vehicles, creating an integrated emergency communications network that connects aerial and ground assets.
Conclusion
With fast connectivity after power-up, fiber-like bandwidth, long-range transmission, and low operating costs, KINGSAT's automatic-tracking microwave antenna solution overcomes the limitations of conventional emergency communication systems in terms of transmission capacity and deployment efficiency.
Whether for disaster response or temporary base station deployment in remote areas, KINGSAT provides telecom operators, emergency management agencies, and other customers with reliable, cost-effective wireless communications solutions.
