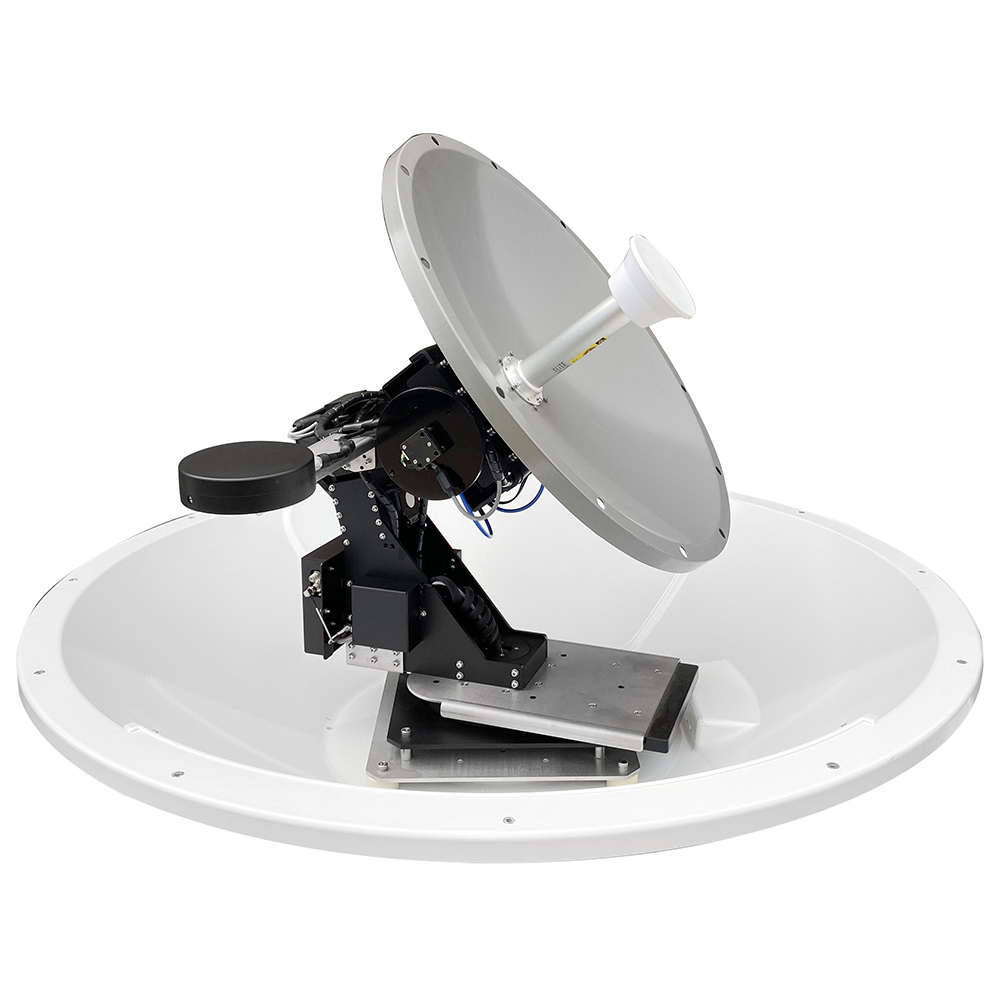

KM-M8
- Point to Point Tracking ，Remote to 50KM
- Support Built-in Multi-point database ，GNSS pointing system
- High Gain Parabolic Antenna ，Extented Frequency to 4.9-6.5Ghz
- Broadband ，High speed ，Up to 400Mbps
Quick Link:
| M8 | ||||||||||||
| Dish Diameter | 60 cm(23”) | |||||||||||
| Weight: | 65KG(143.3lbs) | |||||||||||
| Radom Size | 110 X 112 cm (43.3” X 44.1”) | |||||||||||
| Radome Material | ASA | |||||||||||
| Operating Platform | 3-Axis | |||||||||||
| Azimuth Range | 0° to 690°/Unlimited | |||||||||||
| Elevation Range | -5° to 115° | |||||||||||
| Cross Level Range | ± 35° | |||||||||||
| Position Acquisition | Built in Gyro | |||||||||||
| Ship Motion Support | Roll: ± 25° @8~12 sec,Pitch: ± 15° @6~12 sec,Yaw: ± 8° @15~20 sec | |||||||||||
| Tracking Accuracy | Automatic tracking level ≤ 1.0dB (R.M.S) | |||||||||||
| Frequency | 5.15 ~ 5.85GHz | |||||||||||
| Gain | 31dBi | |||||||||||
| Horizontal beam width | （H）4.5°；（V）4.5° | |||||||||||
| Vertical beam width | （H）4.5°；（V）4.5° | |||||||||||
| VSWR | ≤1.8 | |||||||||||
| POL | Cross-pol only | |||||||||||
| Input impedance | 50Ω | |||||||||||
| Front-to-rear ratio | 32dB | |||||||||||
| Maximum Power | 50W | |||||||||||
| Operating Temperature | -30° ~ 70°C | |||||||||||
| Storage Temperature | -30° ~ 85°C | |||||||||||
| Humidity | Up to 100% @ 40°C | |||||||||||
| Wind Speed | 60m/sec max from any direction | |||||||||||
| Water Proof | IP56 | |||||||||||
Technology & Feature
-
Piont to targer station within 0.2 degree ，can capture peak of signal with unique algorithem.
-
ACU can be built with multiple targets and elec tronic fence, based on the longitude and latitude, automatic switching tracking target.
-
Advanced 3-Axis stabilized mechanical design and high sensitive gyro which is made by dual GNSS moduleenable always-lock connectivity.
-
Proprietary algorithm ，keep stable signal reception and stale link access.
-
Proprietary algorithm ，keep stable signal reception and stale link access.
-
Antenna can adapt with different brand MODEM which is customized design from different purose.
