In demanding environments such as remote islands, mining sites, and nearshore operations where terrestrial networks are difficult to deploy, microwave antenna provides high-bandwidth, low-latency connectivity for long-distance backbone transmission.

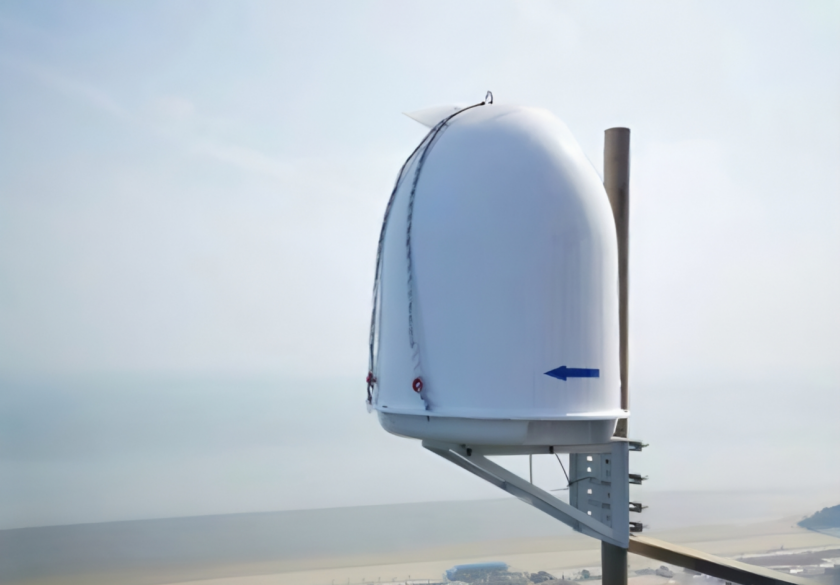

For practical microwave network deployment, pole mounting on towers and buildings remains one of the most widely used installation methods because it adapts well to different terrains and deploys relatively quickly.
Traditional Pole-Mounted Microwave: Aligned, but Why Can't It Hold?

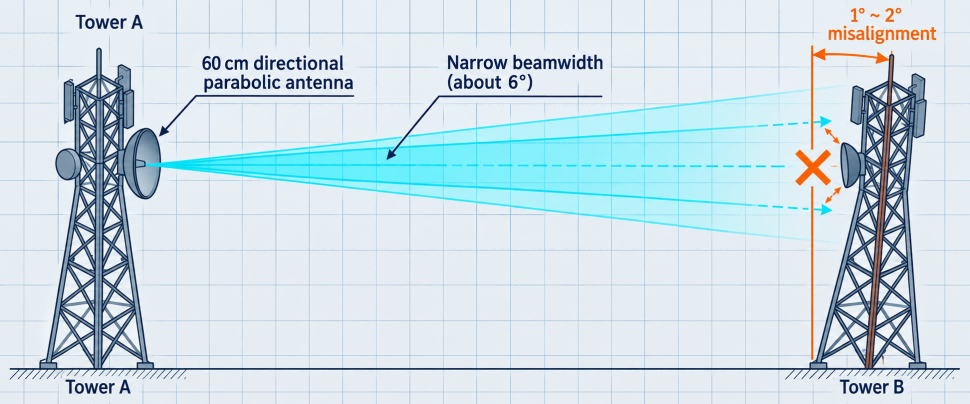

Traditional fixed microwave links typically rely on high-gain directional parabolic antennas with extremely narrow beams. For example, a 60 cm directional antenna may have a beamwidth of only around 6°. This means accurate alignment between both ends of the link is critical to maintaining stable signal levels.
In practice, these antennas encounter constant environmental challenges that can gradually or abruptly disrupt their alignment.
Ground Settlement & Thermal Expansion: Even the slightest physical shift, tilt, or foundation settling of a tower or mounting pole can throw the narrow microwave beam off target, causing severe signal degradation or complete link failure.
Extreme Weather & Typhoons: High winds, monsoons, and typhoons subject elevated antennas to intense mechanical stress. When an antenna is knocked out of position, the link loses alignment, disrupting critical communications precisely when they are needed most.
High Maintenance & Realignment Costs: Regaining alignment often requires a professional crew to climb the tower and manually readjust the antenna. In remote areas, offshore platforms, or harsh weather, this manual process is time-consuming, costly, and inherently hazardous.
From Manual Realignment to Automatic Alignment: How the MP Series Self-Calibrates

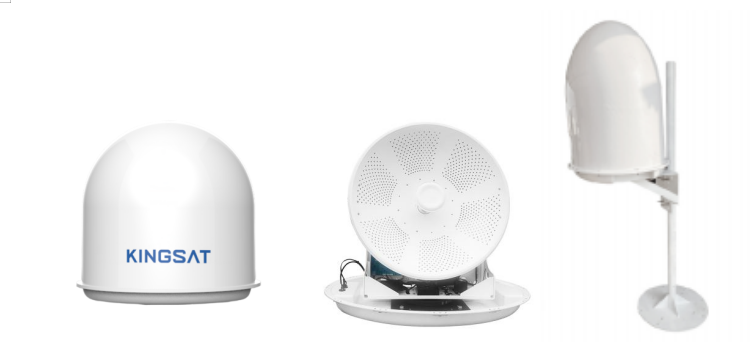

To address these challenges, KINGSAT developed the MP Series two-axis pole-mounted self-calibrating microwave antenna.
Unlike traditional fixed antennas, the MP Series relies on automated alignment and intelligent signal acquisition. Driven by high-precision sensors and advanced pointing algorithms, it automatically re-targets the remote terminal if strong winds or tower shifts cause a misalignment, provided the deviation is within the ±30° operating range (60° scanning sector). There is no need for manual tower climbs; the antenna performs a smart 2D scan to reacquire the signal, lock onto the main beam, and instantly restore the link.
From Automatic Alignment to Link Self-Recovery: How Does the MP Series Work?
The KINGSAT MP Series combines multiple tracking technologies to enable automatic alignment and link self-recovery.
1. Two-Axis High-Precision Servo Platform
The antenna uses a two-axis servo tracking structure covering both azimuth and elevation. Within the ±30°scanning sector, the system can search across the available area to rapidly acquire the target signal and restore accurate alignment.
2. Dynamic AGC Monitoring & Precision Tracking
The Antenna Control Unit (ACU) continuously monitors high-precision AGC signal levels. Powered by KINGSAT’s advanced tracking technology, the system ensures pointing accuracy within 0.2° and limits receive-level fluctuations (R.M.S.) to under 1 dB, even in dynamic environments. Instead of relying solely on initial installation alignment, the antenna constantly optimizes its orientation in real time.
3. Intelligent Link Self-Recovery
If strong winds or environmental disturbances cause signal levels to drop below a preset threshold, the system automatically triggers a self-healing search. It instantly locks onto the strongest RF channel and restores alignment, ensuring seamless link recovery without manual intervention.
4. Telecom-Grade Design for Harsh Environments
The MP Series is engineered for demanding outdoor environments, with protection against water ingress, UV exposure, high humidity, and strong winds.
Its mechanical structure is designed for long-term operation in challenging locations such as high-salt-spray islands, coastal areas, and mountain-top communication towers.
Zero-Touch Maintenance: From Tower Climbing to Remote Control
For enterprises and telecom operators, automatic alignment and link self-recovery turn microwave network O&M from a headache into a breeze.
Say goodbye to tower climbing: Forget alignment by seasoned experts. During setup or realignment, the system locks onto the target automatically, slashing commissioning time from days to minutes.
Rock-solid uptime: Severe weather or physical shifts can disrupt traditional links. The MP Series automatically re-acquires targets and restores connectivity, ensuring uninterrupted 24/7 backhaul reliability.
24/7 cloud control & remote troubleshooting: Monitor everything from your browser. Check live stats like AGC levels, GPS coordinates, and azimuth in real time via an intuitive web interface.
Diagnose and fix issues remotely before you even think about sending a tech on-site. Shift your operations from reactive firefighting to effortless remote management.
From Telecom Towers to Remote Islands: Typical Applications of the MP Series
4G/5G Tower Backhaul (Tower-to-Tower)
Serves as a reliable terrestrial backbone or backup network. Its automatic realignment feature ensures stable connectivity after strong winds or physical disruptions, significantly cutting down on costly tower maintenance.
Remote Island-to-Shore Connectivity
Delivers high-capacity microwave backbone links of up to 1,500 Mbps between remote islands and shore stations, performing reliably even in high-wind, humid, and foggy environments.
Nearshore Fixed-Platform Backhaul
Provides high-bandwidth wireless backhaul for operational data and communications between shore stations and fixed offshore facilities—such as substations and platforms, located 30–100 km offshore.
Conclusion: Rethinking Pole-Mounted Microwave Maintenance

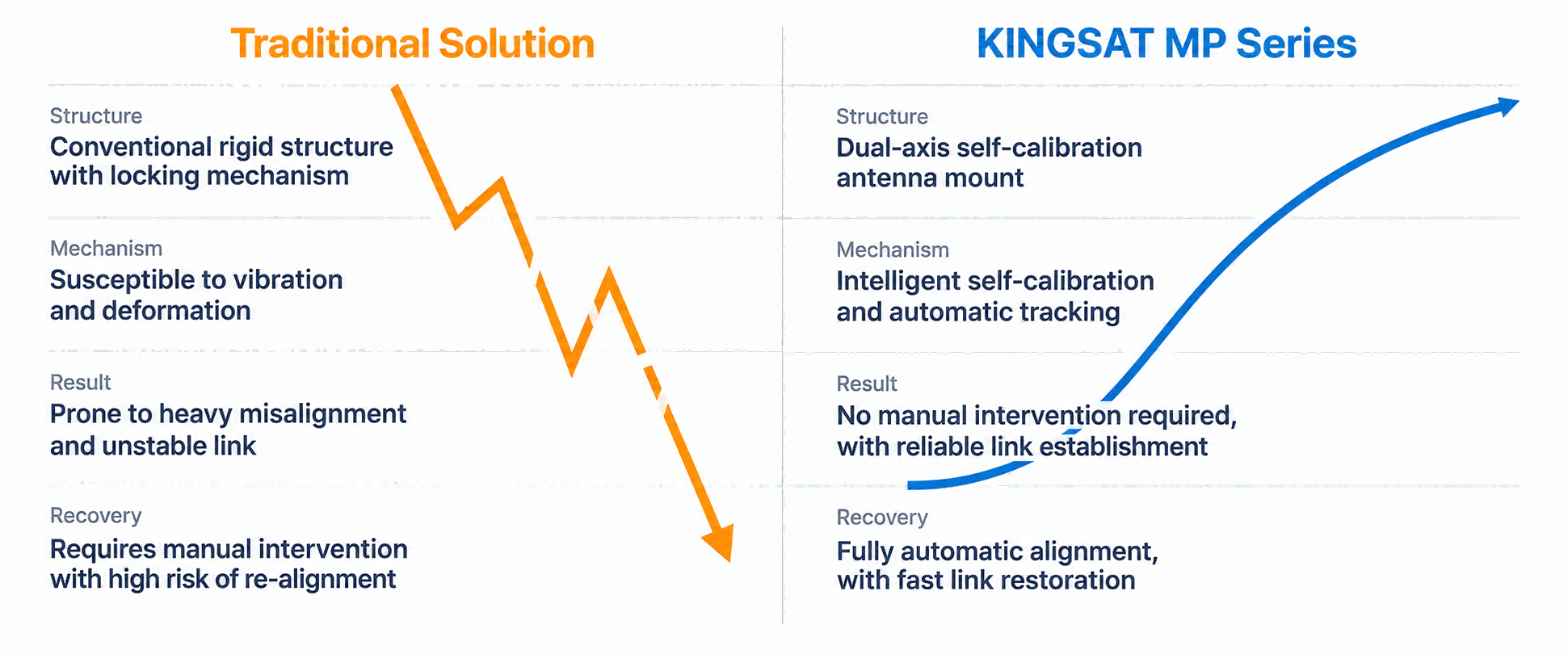

Traditional microwave links demand risky, manual tower climbs whenever misalignment happens. The KINGSAT MP Series changes the game with a ±30° auto-scanning range, dual-axis control, and automatic link recovery. Instead of manual realignment, the antenna automatically re-locks the signal within seconds. This drastically cuts maintenance costs and boosts link reliability in harsh environments. For telecom towers, remote islands, and coastal sites, the MP Series brings smarter, hassle-free maintenance to long-distance microwave networks.
