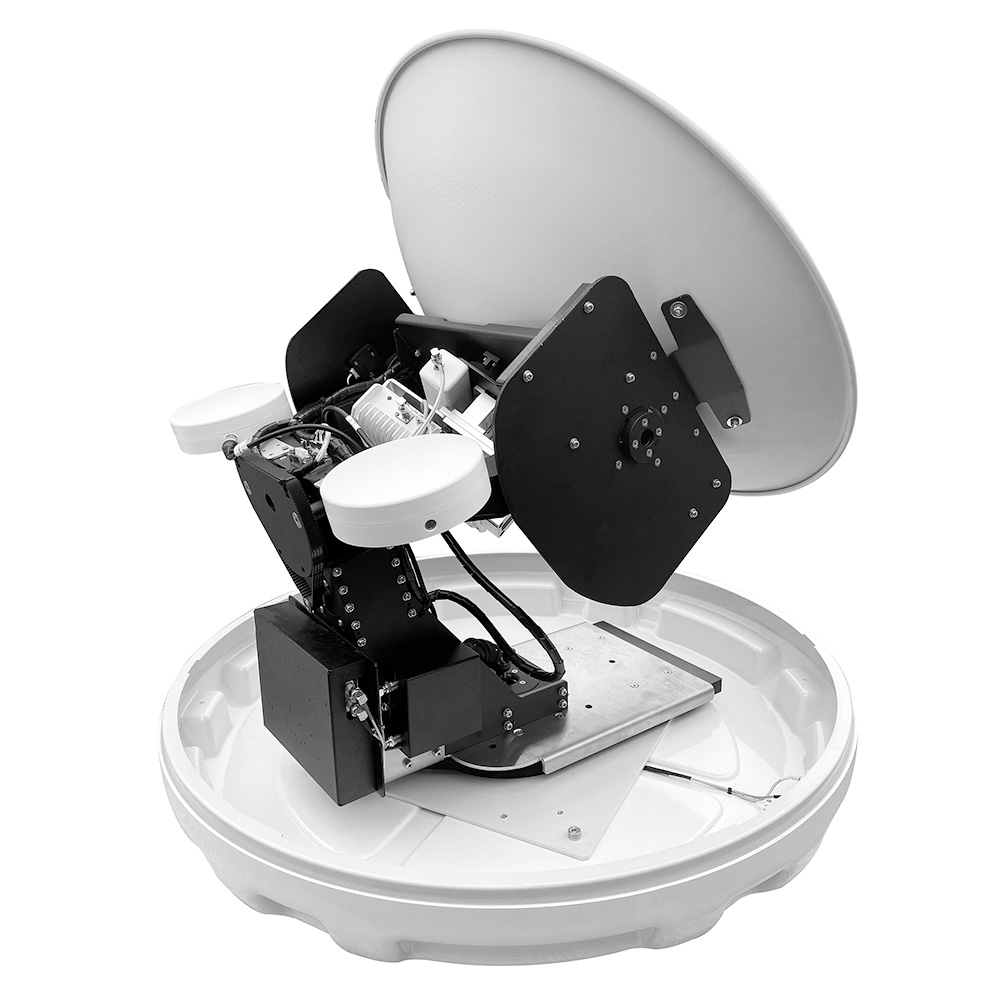

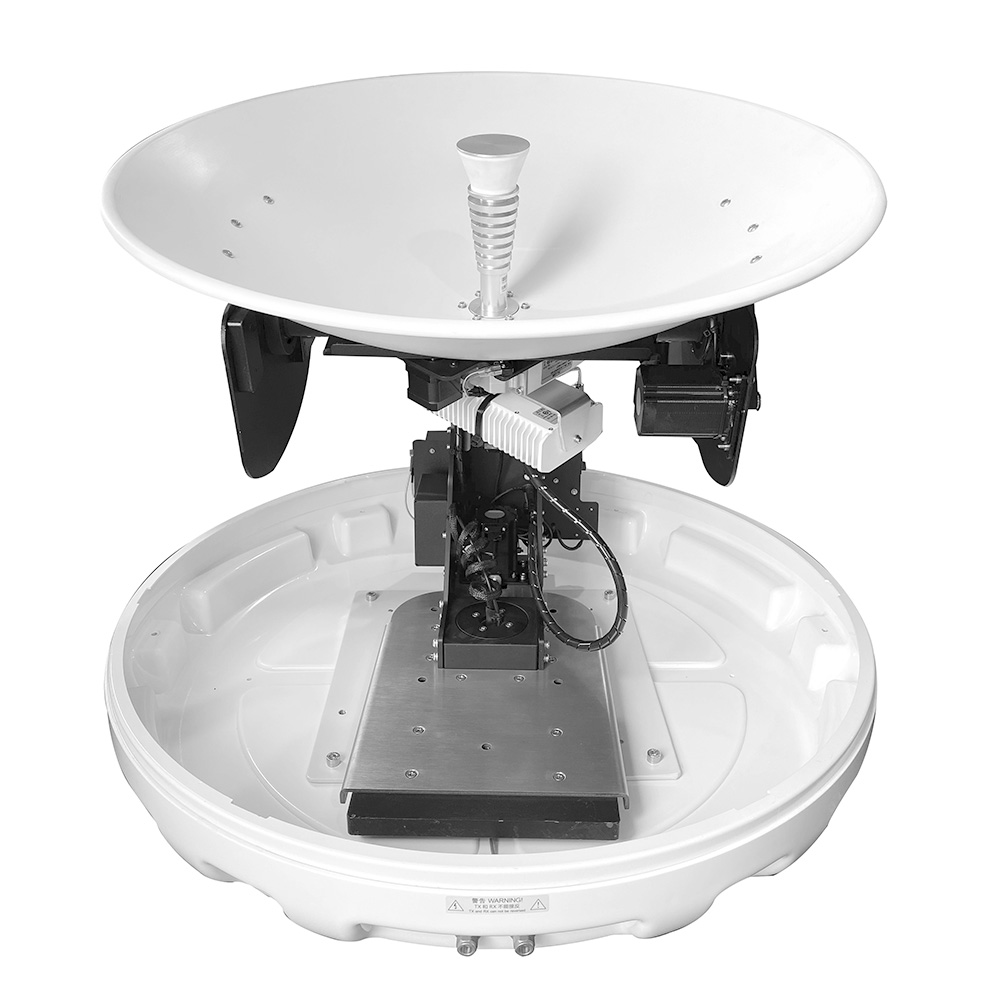

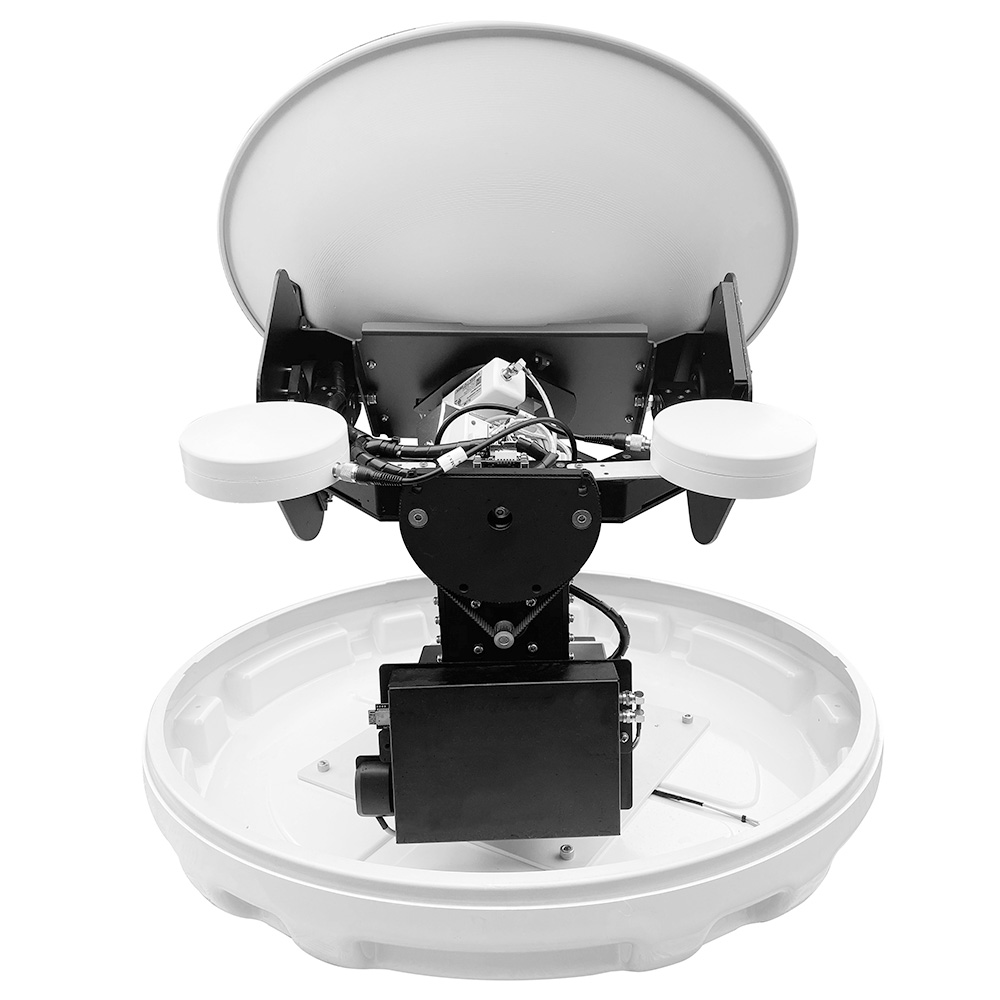

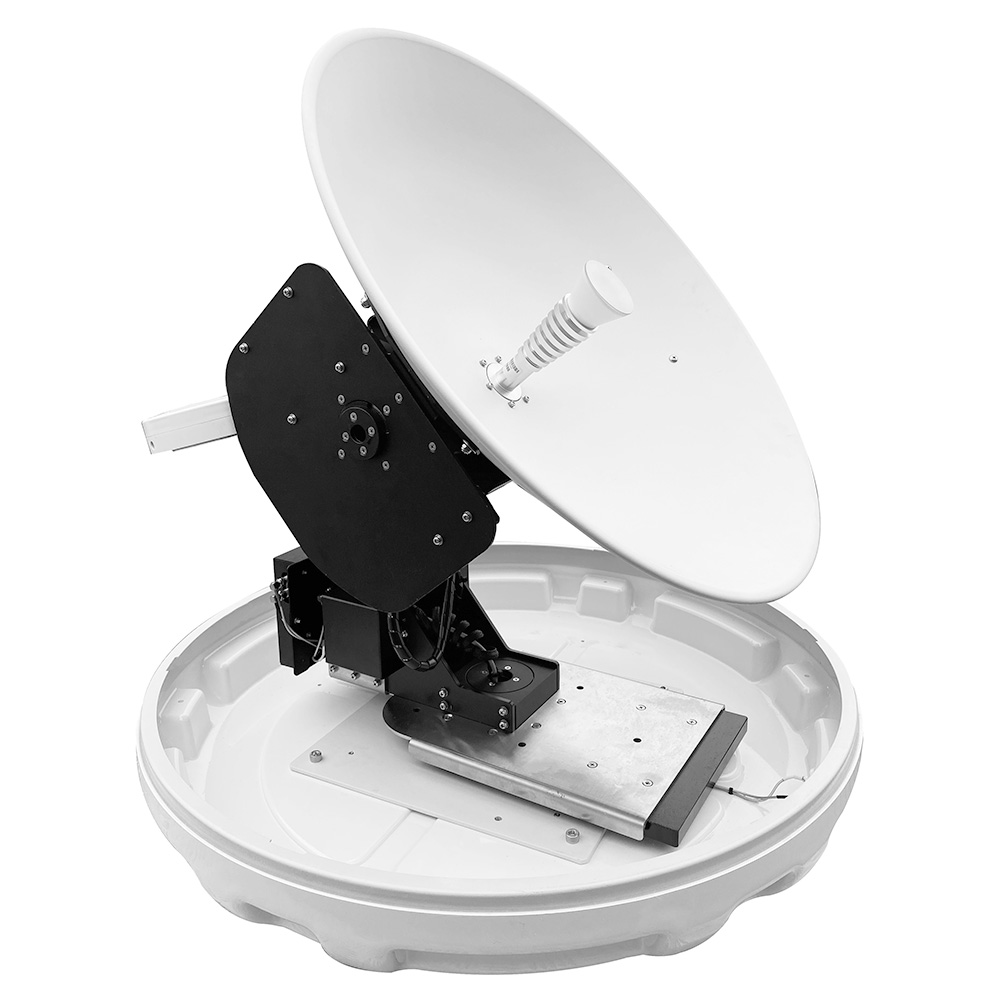

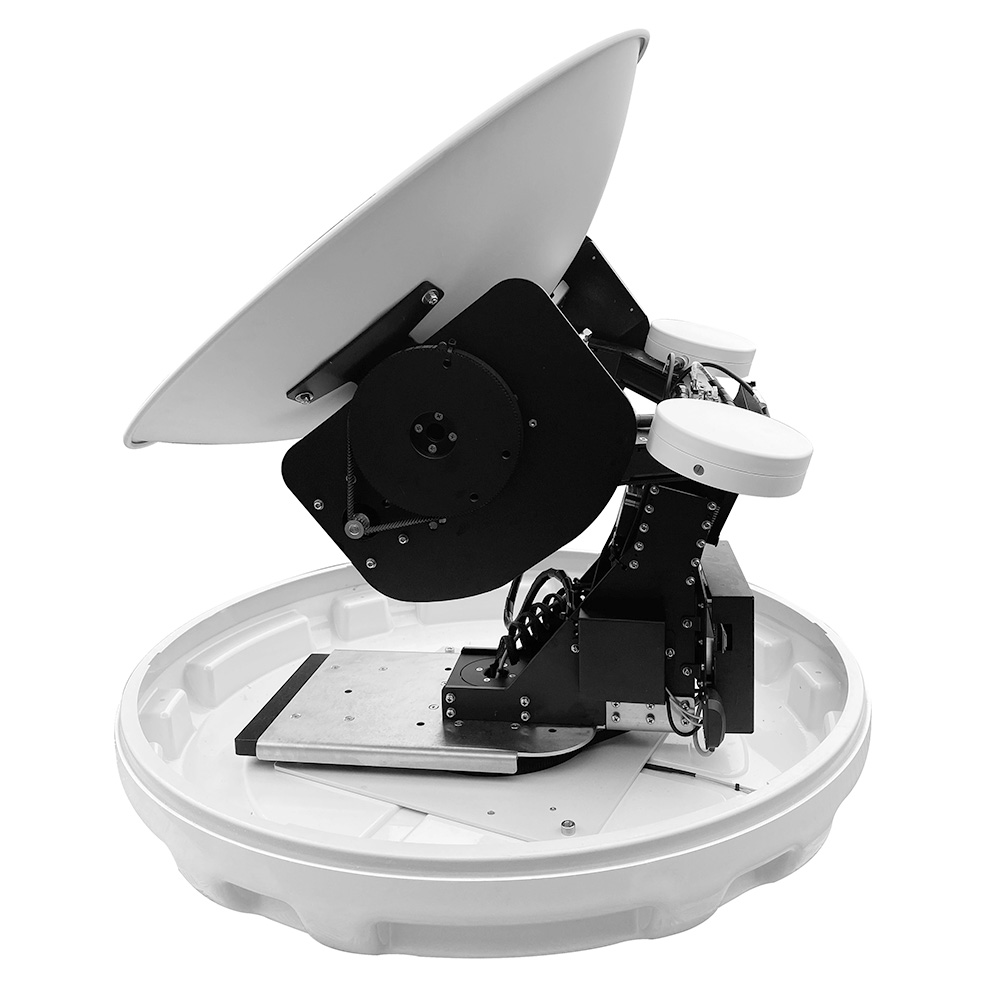

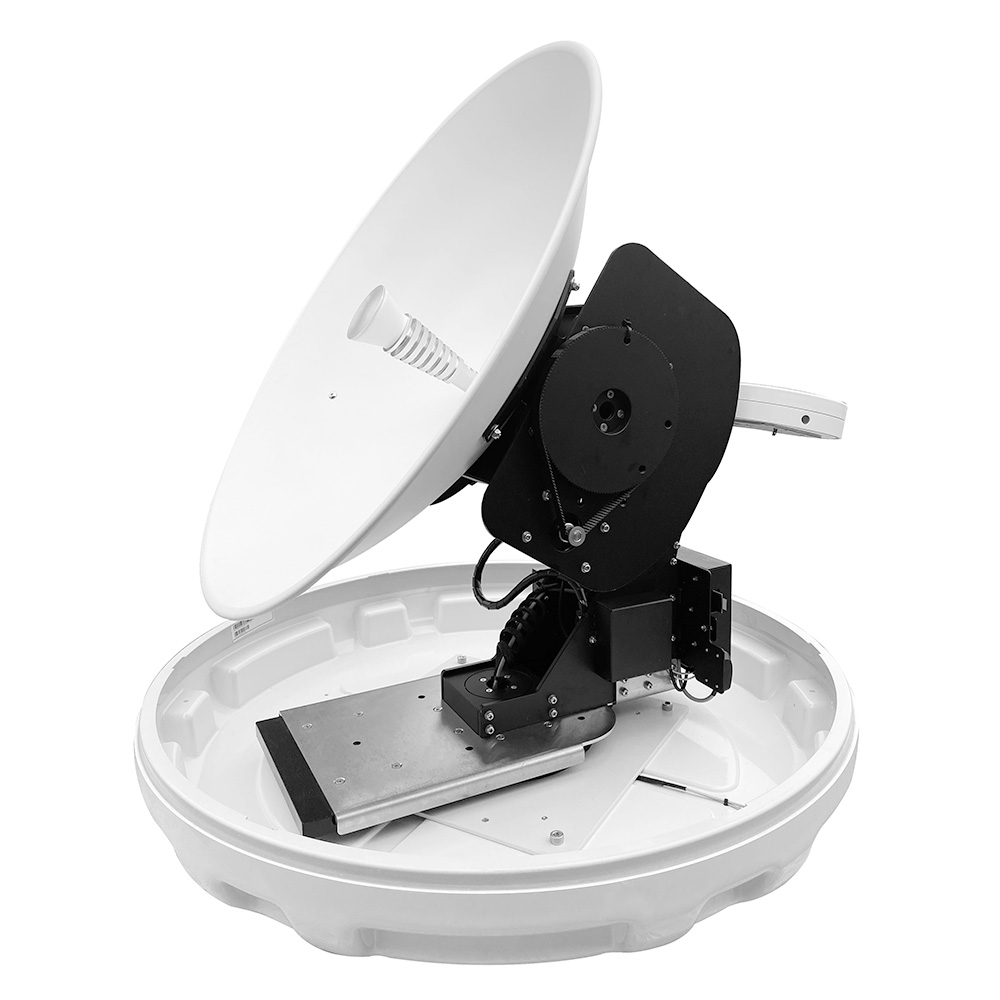

KM-P6E
- 3-Axis stabilized and 4-Axis tracking
- Azimuth 0-690°
- Builtin Dual GPS Gyro
- Support Webpage Interface Function
- Step Motor
- ASA Radome（Loss＜0.8dB）
Quick Link:
| P6E | ||||||||||||
| Mechanical Specification | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Dish Diameter | 64 cm(25”) | |||||||||||
| Radome Size | 78 X 80 cm (31” X 31.5”) | |||||||||||
| Weight | 43.5KG(96lbs) (including ACU, LNB and 6W BUC) | |||||||||||
| Radome Material | ASA | |||||||||||
| Antenna Stabilization | ||||||||||||
| Operating Platform | 3-Axis + Auto Skew | |||||||||||
| Azimuth Range | 0° to 690°/Unlimited | |||||||||||
| Cross Level Range | ± 30° | |||||||||||
| Elevation Range | -10° to 115° | |||||||||||
| Skew Range | Automatic, 0° to 240° | |||||||||||
| Position Acquisition | Built in Gyro | |||||||||||
| Operating Specification | ||||||||||||
| Rx Frequency | 10.70 ~ 12.75 GHz | |||||||||||
| Rx Gain | 36dBi @ 12.5GHz | |||||||||||
| Tx Frequency | 13.75 ~ 14.5 GHz | |||||||||||
| Tx Gain | 37.2dBi @ 14.25 GHz | |||||||||||
| Antenna Control Unit | ||||||||||||
| Dimensions | 48.2 X 30 X 4.5 cm | |||||||||||
| Weight | 3 kg | |||||||||||
| Display | 256 X 64 OLED | |||||||||||
| Power requirement | 100-230VAC 50-60Hz | |||||||||||
| Working Environment | ||||||||||||
| Operating Temperature | -25° ~ 55°C | |||||||||||
| Storage Temperature | -30° ~ 85°C | |||||||||||
| Humidity | Up to 100% @ 40°C | |||||||||||
| Water Proof | IP56 | |||||||||||
Technology & Feature
-
Unique tracking algorithm makes KINGSAT VSAT keep fast and stable tracking performance in different condition of sea.
-
Web Interface Function makes remote commissioning and remote trouble shooting easilly.
-
One Button Switching to TVRO Mode is useful function to easily verify hardware status.
-
Builtin GPS Gyro ensures fast tracking target satellite and keep pointing to direction of target satellite when blockage is between antenna and satellite.
