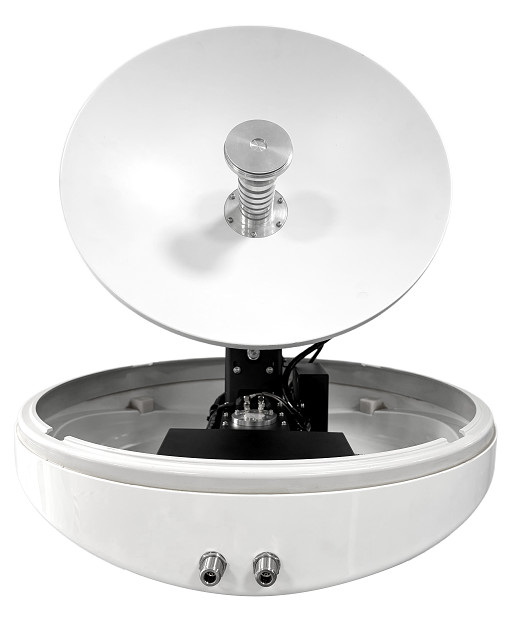

KM-X4
-3-Axis Stabilized & 4-Axis Automatic Skew Adjustment
-Powerful Signal Receiving Performance
-Fast Satellite Searching and Positioning
-Excellent Anti-Heavy Sea Tracking Ability by Proprietary Algorithm
-Easy to change target satellite by Editable Satellite Data Library
-Builtin GNSS Module
-Free External Gyro for Searching Satellite
Quick Link:
| X4 | ||||||||||||
| Physical | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Dish Diameter | 38cm (14.9”) | |||||||||||
| Dimension | 54 X 56.5 cm | |||||||||||
| Weight | 25 KG | |||||||||||
| Technical Specifications | ||||||||||||
| Frequency | Ku Band(10.7~12.75GHz) | |||||||||||
| Operating Platform | 3-Axis Stabilized (Azimuth, Elevation, Cross-level) and 4-Axis Tracking(Skew) | |||||||||||
| Polarization | Linear or Circular | |||||||||||
| Azimuth Range | 690° | |||||||||||
| Elevation Angle | -20°~115° | |||||||||||
| Cross-level Angle | ±20° | |||||||||||
| Ship Motion | Roll±25° Pitch±10° Yaw±8°@6 sec period | |||||||||||
| Tracking Rate | >90°/s | |||||||||||
| Temperature | -30°C~70°C | |||||||||||
| Humidity | Up to 100% @40℃ | |||||||||||
Technology & Feature
-
Advanced 3-Axis stabilized mechanical design with a 4th Axis of automatic skew adjustment system guarantees optimal tracking performance.
-
Built-in Wifi module enables upgraded remotely and monitored status via mobile phone.
-
An integrated GPS module allows for accurate positioning and faster initial signal acquisition.
-
The ACU is pro-programmed with all Worldwide Satellite database and can be easily revised or extended manually.
-
Simple installation and setup design with aesthetic maritime white dome of environment-resistant feature save labor and maintenance costs.
-
Using self-made LNB and RF processing components, which offers the best reception quality and maxiumum antenna performance.
