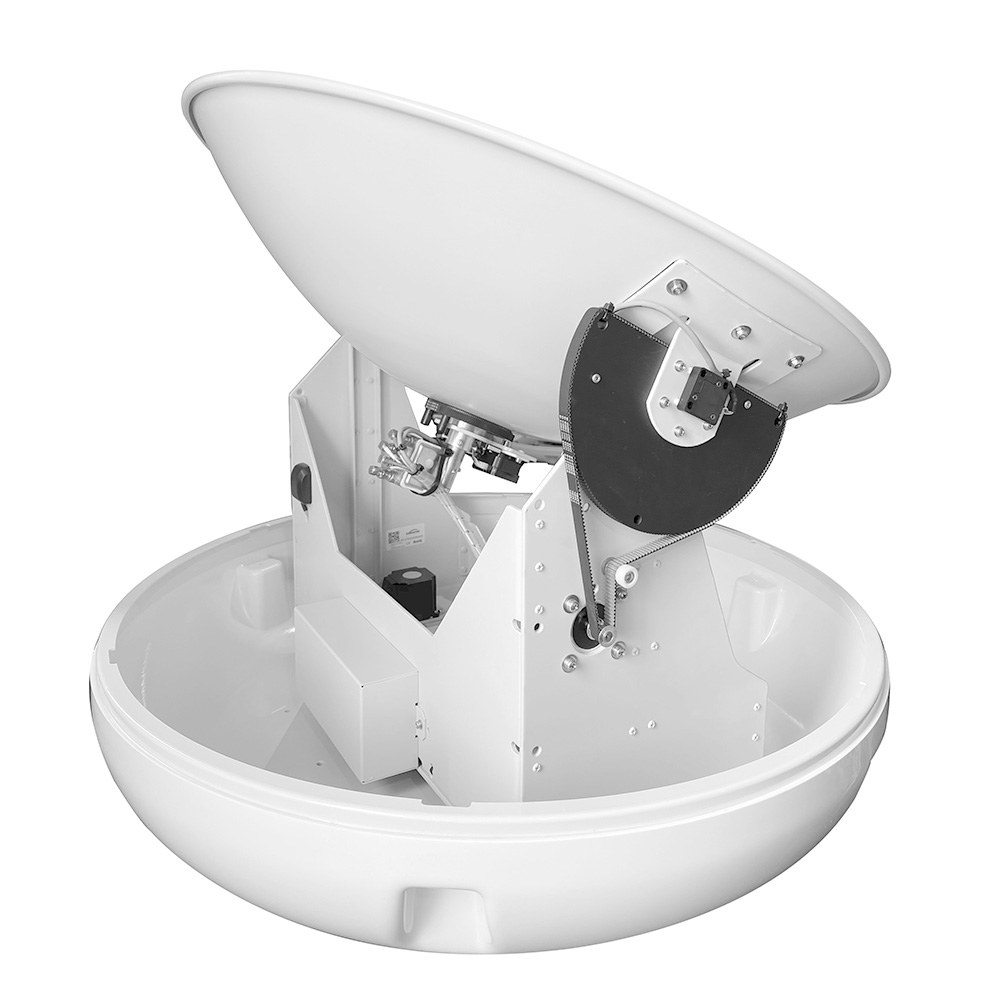

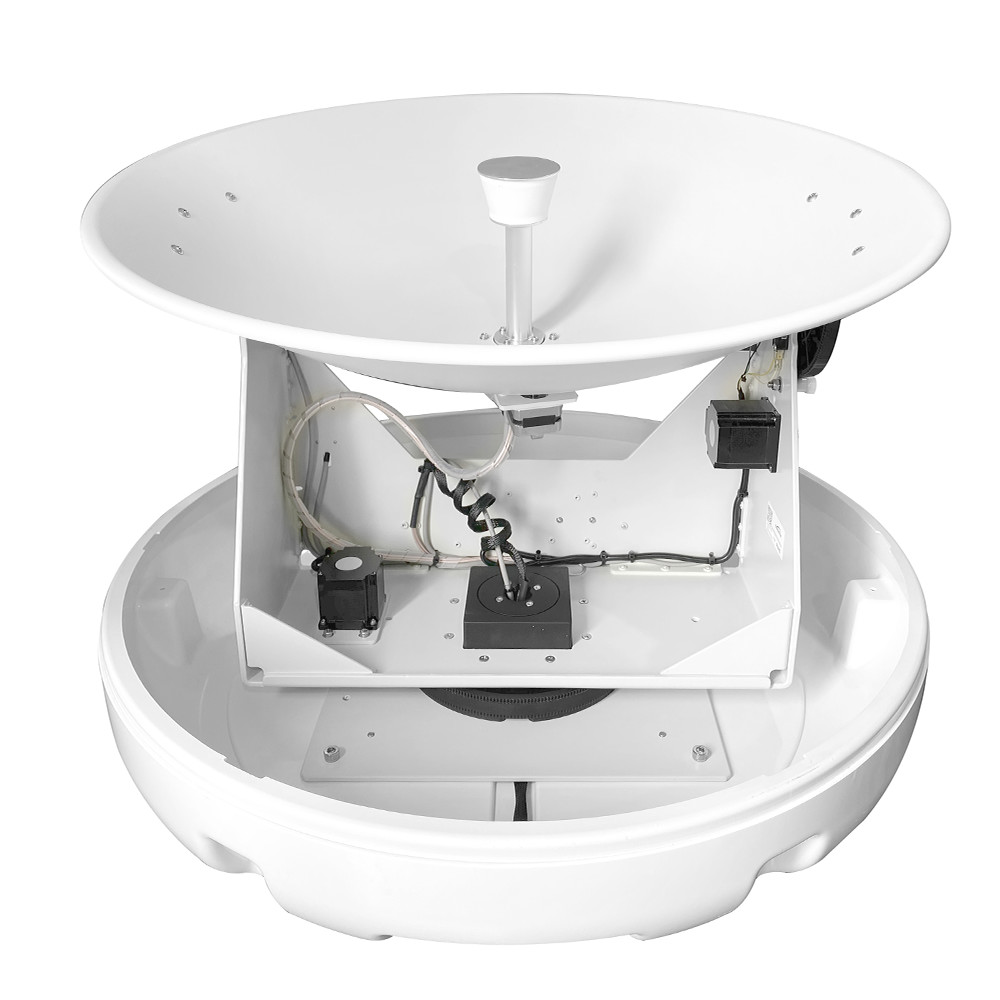

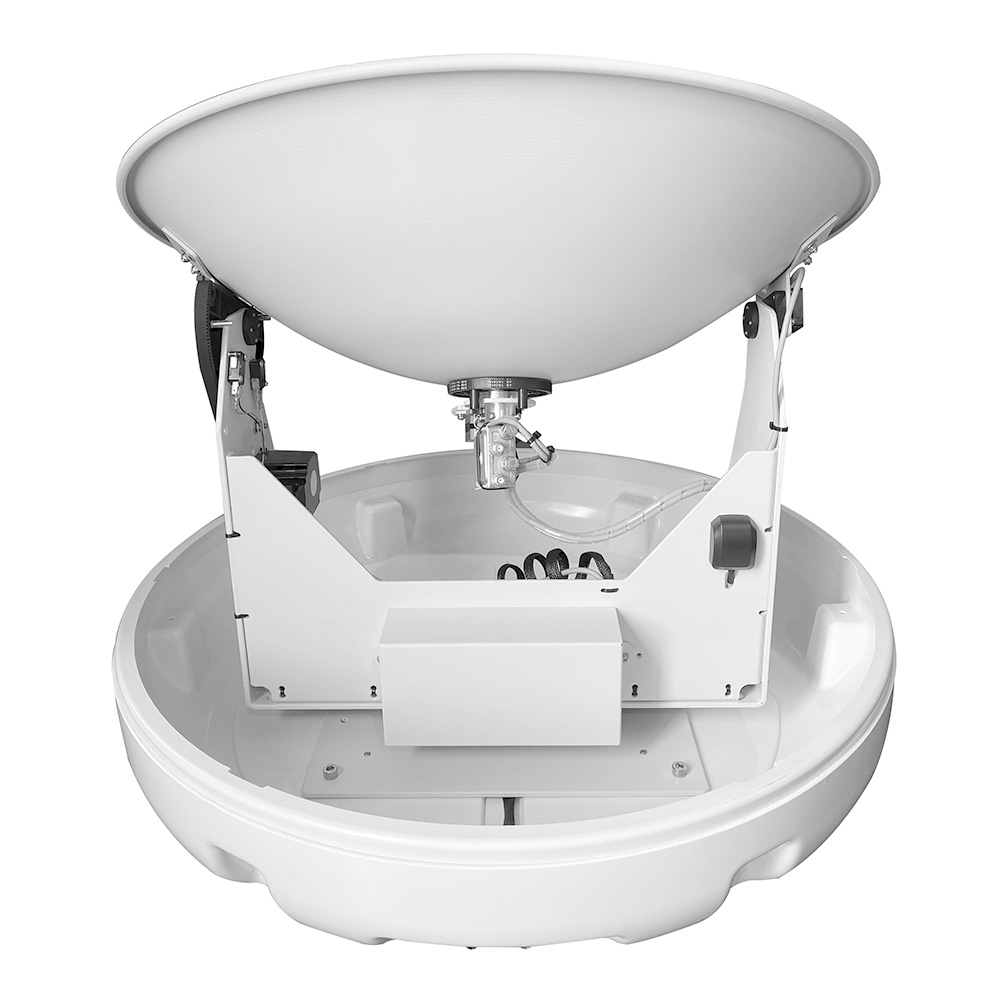

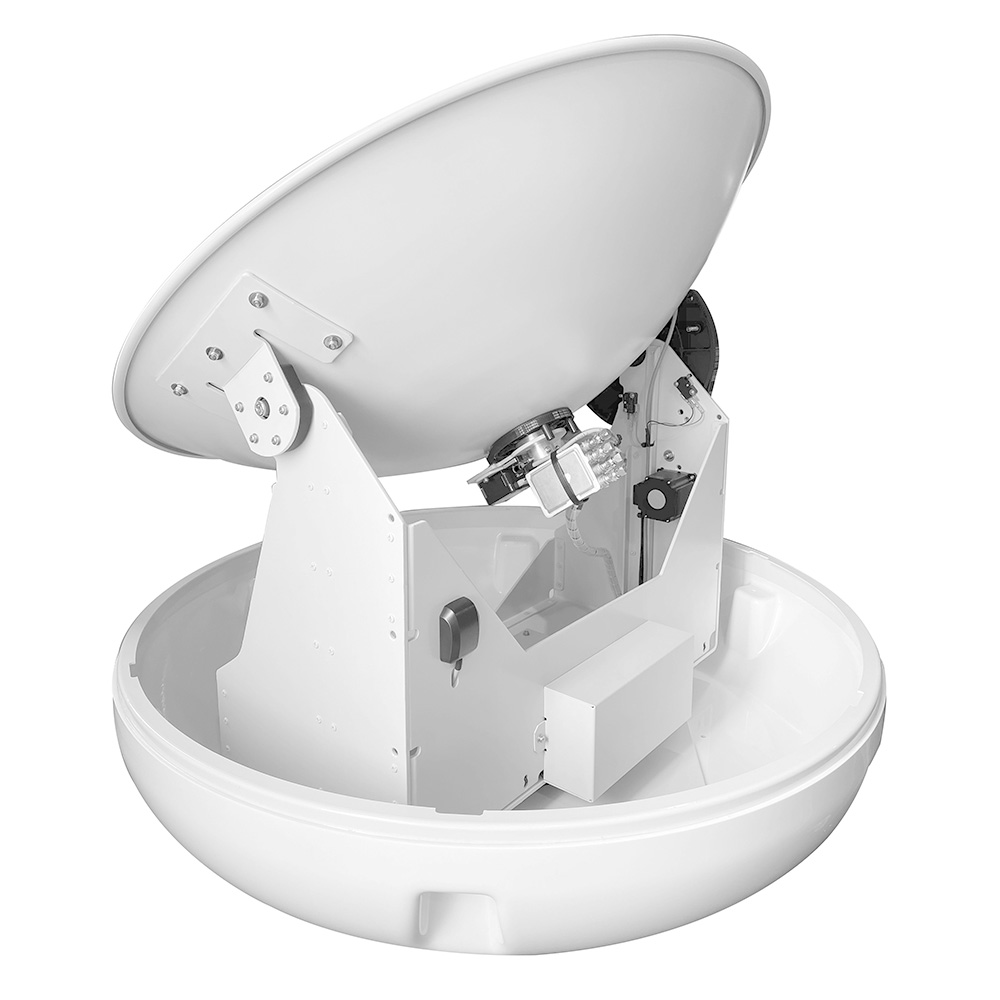

KM-V6
-2-Axis Stabilized & 3-Axis Automatic Skew Adjustment
-Powerful Signal Receiving Performance
-Fast Satellite Searching and Positioning
-Excellent Anti-Heavy Sea Tracking Ability by Proprietary Algorithm
-Easy to change target satellite by Editable Satellite Data Library
-Builtin GNSS Module
-Free External Gyro for Searching Satellite
Quick Link:
| V6 | ||||||||||||
| Physical | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Dish Diameter | 60cm(24'') | |||||||||||
| Dimension | 73 X 76 cm | |||||||||||
| Weight | 20 KG | |||||||||||
| Technical Specifications | ||||||||||||
| Frequency | Ku Band(10.7~12.75GHz) | |||||||||||
| Minimum EIRP | 46dBW/47dBW | |||||||||||
| Operating Platform | 2-Axis Stabilized+Auto Skew | |||||||||||
| Polarization | Linear or Circular | |||||||||||
| Elevation Angle | 0°~90° | |||||||||||
| Azimuth Range | 690° | |||||||||||
| Ship Motion | Roll±25° Pitch±15° Yaw±8°@6 sec period | |||||||||||
| Tracking Rate | >90°/s | |||||||||||
| Temperature | -30°C~70°C | |||||||||||
| Humidity | 0~95% | |||||||||||
Technology & Feature
-
Proprietary algorithm,advanced mechanical design,embedded GPS and high-sensitive gyro enable always-lock connectivity and worldwide deployment.
-
Expendable Worldwide Satellite Library. The ACU is installed with Worldwide satellite database and can be easily revised or expended manually.
-
An integrated GPS antenna allows for the antenna control system to update the GPS data automatically for accurate positioning and faster satellite locking .
-
2-Axis pedestal design with a 3th Axis of automatic skew adjustment system guarantees optimal antenna performance.
-
Simple installation and setup design with aesthetic maritime white dome of environment-resistant feature save labor and maintenance costs.
-
Using self-made LNB and RF processing components, which offers the best reception quality and maxiumum antenna performance.
