Know More

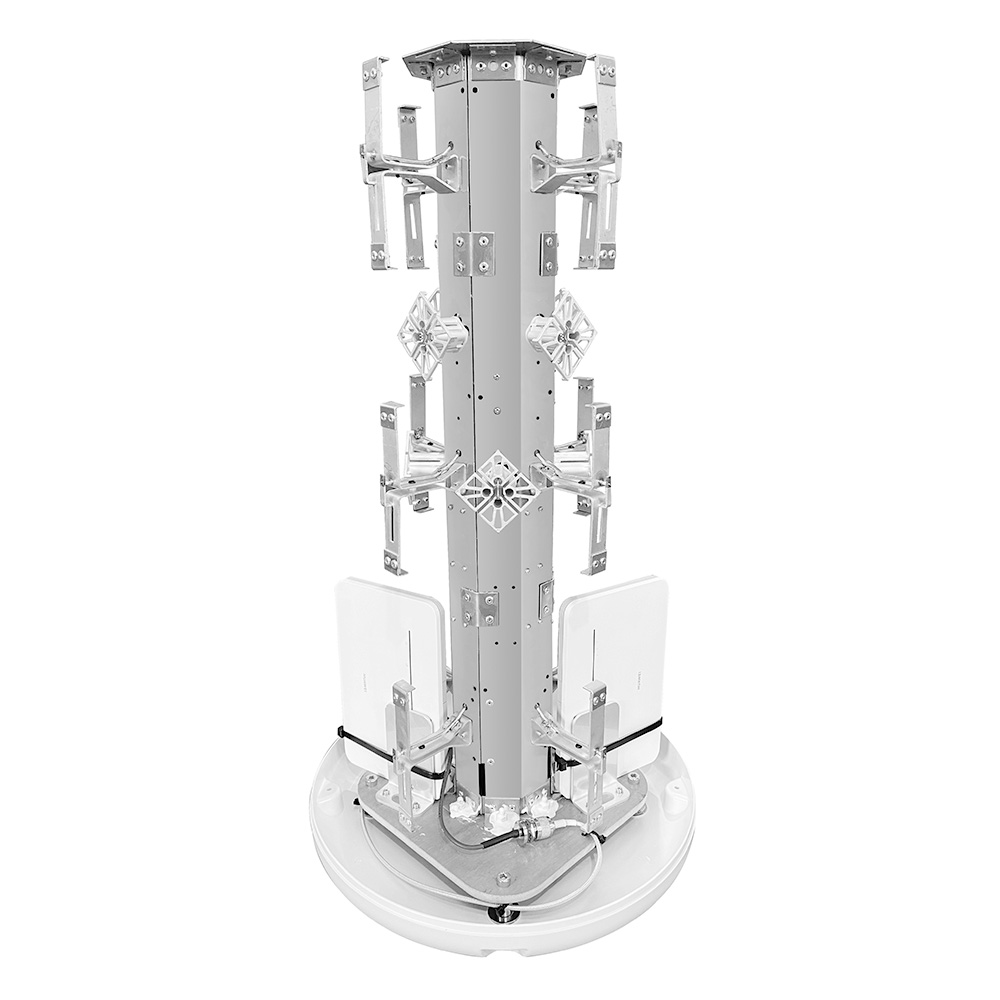

KM-Z6
All High Band Element Solution

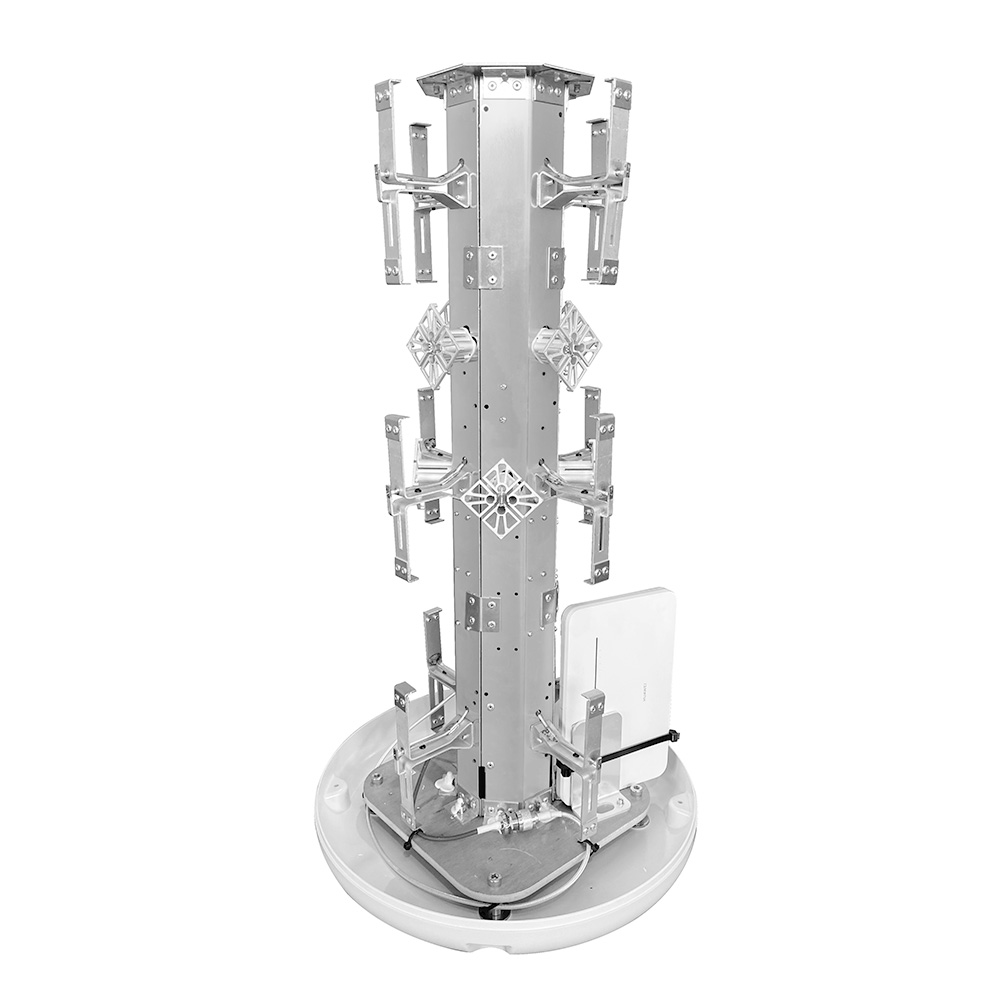

KM-Z3
- Low Band High Gain Up to 10db
- Element beamwidth is 90° ，4 sides to fullfill 360° direction
- Support Available Band Networks for 4G-LTE
- Easy to Setup ，Use and Maintenance
- Built-in 4G router ，Simple Design
Quick Link:
| Z3 | ||||||||||||
| Mechanical Specification | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Radome Size | 41 X 84CM ( 16“ X 33’’ ) | |||||||||||
| Weight | 10 KG(Includes 4G router&20m network cable) | |||||||||||
| Radome Material | ASA | |||||||||||
| Electrical Performance | ||||||||||||
| Frequency Range | 690-960MHz and 1710-2700MHz(All available 4G-LTD band support) | |||||||||||
| Beamwidth | H: 360°( Omni-Direction ) E:≥ 12°±2 | |||||||||||
| Gain | Low band ≥7dBi, High Band ≥5dBi | |||||||||||
| Electrical Downtilt | 0° | |||||||||||
| Side lobe suppression | ≥14dB | |||||||||||
| VSWR | ≤2/≤1.7 | |||||||||||
| Polarization | Vertical | |||||||||||
| Outdoor 4G Router Specification | ||||||||||||
| SIM card | Support 1.8/3.3V standard SIM card（SIM card slot adaptor supplied ） | |||||||||||
| POE adaptor | AC110-220V to POE Adaptor, Output 24V/1A or 12V/1A | |||||||||||
| Nominal Maximum Speed（4G-LTE） | Downlink：150Mbps, Uplink：50Mbps | |||||||||||
| Working Environment | ||||||||||||
| Operation Temperature | -25° ~ 55°C | |||||||||||
| Storage Templerature | 30° ~ 85°C | |||||||||||
| Wind Speed | 60m/sec max from any direction | |||||||||||
| Water Proof | IP56 | |||||||||||
Technology & Feature
-
High Gain, Omni-direction Antenna.
-
Easy to Setup, Use and maintain.
-
Built-in 4G router, simple design.
-
Support Available Band Networks for 4G-LTE.
-
POE Power Supply, Easy to Wire.
-
Specially for to Marine Industry, High Stability.
